Hydraulic Curing Presses HVML

Hydraulic presses are a completely new generation of the curing presses developed at TS Plzeņ.
The new presses are based on a fully original technical conception that represents a new, progressive component in the process of tyre production by its benefits and originality of technical solution. If compared with classical mechanical presses the significant advantages of the hydraulic tyre curing presses TS Plzeņ essentially allow to customers to make the production process of tyres more efficient. Main advantages of new concept Curing Presses are on this page.

The presses are determined for forming of radial and diagonal tyres with natural, synthetic or steel cords. They are equipped with heating platens, fully automatic loaders and unloaders of tires.

The hydraulic curing presses are produced in the following versions:

  • Two-chamber - in the sizes from 63,5" up to 75"
  • One-chamber - in the sizes from 75" up to 130"


Hydraulic Press HMVL 63,5

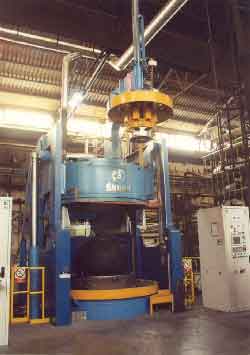

Hydraulic Press HMVL 90"

Main advantages of new concept of HMVL Presses




Hydraulic press HMVL 75"
  • higher accuracy of mould guidance
  • outstanding energy savings during the curing process (28% at HMVL 63,5" and 40% at HMVL 75")
  • shortening of manipulation time by 18% provided by simultaneous process of dispatching of a cured tyre and loading of a green tyre
  • shortening of curing time
  • fluently regulated and controlled closing force
  • optimum matching of moulds is not affected by the size of closing force
  • horizontal position of segmental moulds also during press opening
  • semi-automatic adjusting of closing height during the change of moulds
  • better ecological and work conditions in consequence of removal the central grease lubrication and improved thermal insulation
  • high reliability and service life
  • easy and minimal maintenance in running
  • the conception enables the two-chamber design of presses of size 75"
  • the conception enables advantageous technical solution for presses of the largest sizes eg. Presses 100" and 130"


Hydraulic press HMVL 90"
